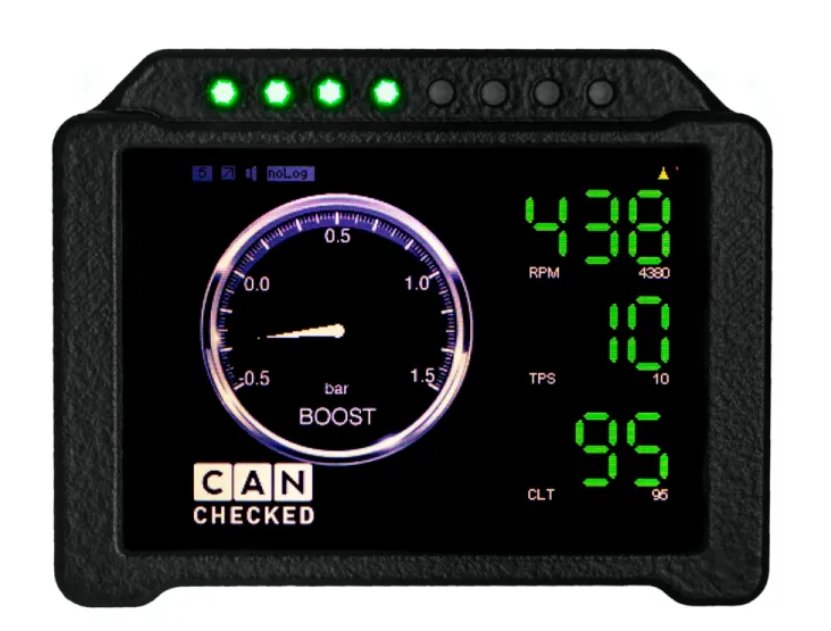

MFD32S—Mini Dash
Product description
KEY FEATURES OF THE MFD32
MFD32 is rich in functions that can be used, but do not have to be.
*
Hardware: 3.2” TFT screen, touchscreen , MicroSD, MicroUSB
- symmetrical display – ideal for rotating it by 90°
- Views freely configurable directly on the display
- Widgets can be moved and resized using drag'n'drop
- up to 17 widgets per ad
- 64 sensors (Can Bus + internal)
- 10 views
- 4x analog inputs
- 2x speed input
- 1x PWM output¹²
- 1x digital output¹²
- optional external shift light
- CAN bus switching
Supported values
Many customers always ask: “Which values can I request from my control unit”. The answer: “ ALL “. Our MFD32 is compatible with ISO 11898-2 and SAE J2284.
The control unit manufacturers themselves determine which values are sent via the CAN bus interface. Documentation is important here – possibly even in the form of a DBC file that can be imported directly. You can also access our extensive list of already implemented controllers. A total of up to 50 sensors can be queried if the manufacturer supports this.
Data available in the broadcast as well as OBD2 queries via Can Bus (11bit/29bit) are implemented. Special protocols such as TP2.0 from VW/Audi and UDS are also available.

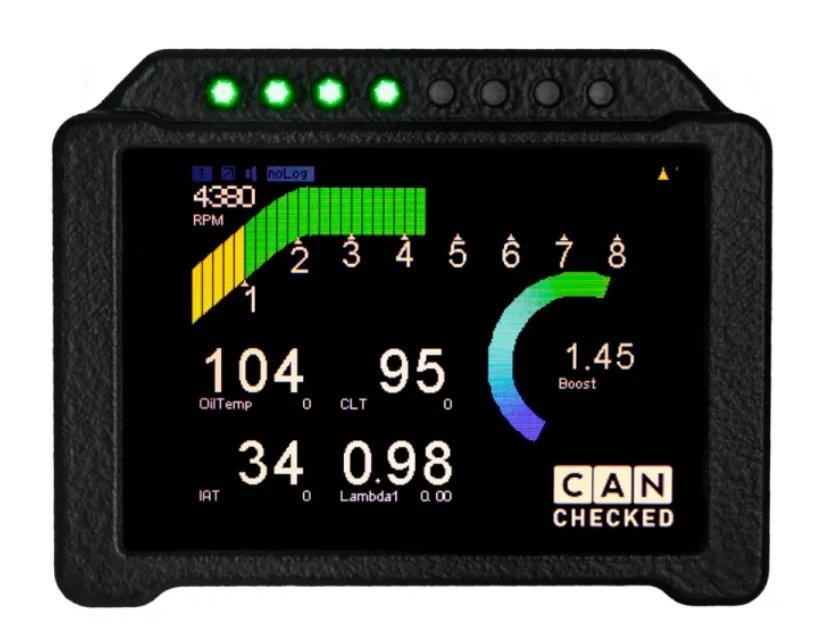

MFD32S shift light adjustment
A very individual setting of the internal shift light leaves nothing to be desired. There are 8 speed thresholds with individual colors and another threshold from which the shift light flashes. The brightness can also be adjusted to the circumstances.
